Overview

Designer

Visual editor for metadata-driven dashboards on route #/cities/dashboard.

The palette is split into three groups. The names below are the ones you read in the palette,

uppercase exactly as the designer writes them.

HTML — the markup building blocks:

Tool	What it is for
`TABLE`	a grid of cells. `TR` and `TD` exist as tools but are not draggable: the table creates them
`DIV`	free-form container, the structural block you use most
`SPAN`, `LABEL`, `Hx`	databound text; `Hx` picks the level from h1 to h6
`ANCHOR`, `IMG`, `IMAGE`, `IFRAME`	links, images, external content
`UL`	list
`BUTTON`	button with a callback
`INPUT`, `TEXTAREA`, `CHECKBOX`, `SELECT`, `MULTISELECT`, `DATE`	input fields
`KPI`	a single highlighted value
`SEPARATOR`, `HR`	separators

DATA — the nodes wired to the backend:

Tool	What it is for
`DATASOURCE`	metadata data source (`route`, filters, sort, paging)
`DATAREPEATER`	list/card view connected to a datasource
`FILTERBAR`	filter bar above the repeater
`PAGER`	paginator

CONTAINER — the layouts:

Two names you will look for in vain: there is no "Dynamic Template" tool — the dynamic

template is what the DATAREPEATER renders, you configure it from its properties and you never

drag it; and "Container" / "Layout" are the group name, not selectable entries.

On top of these come the custom tools registered by the host project

(MetadataProviderService.customDesignerTools), which appear at the end under the group they

declare.

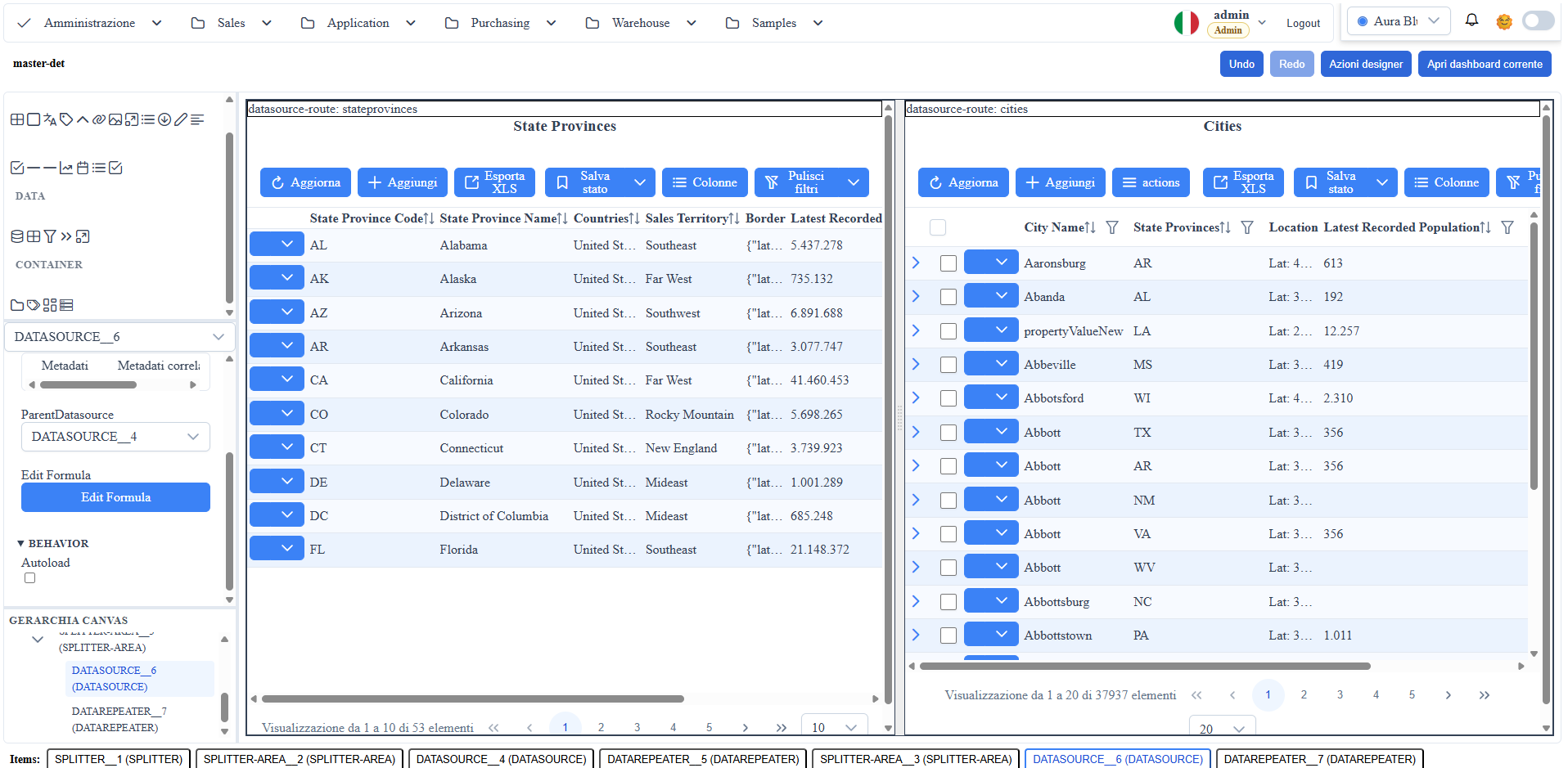

Drag-and-drop nodes onto the canvas with persistence in boardcontent.
Contextual property panel with inputs consistent with the selected components.
Binding between nodes (datasource -> repeater/template) with minimal validation.
Integrated runtime preview and layout realignment.
Pending changes management with guard before exit.

Right-click on a canvas element, a breadcrumb item at the bottom or a node in the hierarchy tree shows a context menu with three items:

Edit properties (pi-cog) — selects the element as the "current tool" and shows its property panel on the right; equivalent to clicking in the tree. Useful to edit properties of nested elements without hunting for them in the hierarchy.
Rename (breadcrumb only) — opens a dialog to rename the displayName.
Remove — deletes the element from the board.

For specific dashboard fixes, prefer boardcontent patches instead of global changes.
Avoid duplicate properties between inputs and inconsistent inline styles.
Always verify that datasources have a populated inputs.route.
